1) To get started open the safe using one of your backup keys via the keyhole at the back of the safe. Open keyhole cover, push key in and rotate key clockwise to open the safe.

2) Locate the battery door and open by depressing the tab near the front of the cover, allowing the door to fold down (Figure A/B).

3) Snap the battery (included in accessory box) into the battery door (Figure B/C). The battery door has molded snaps for the battery to clip into. Note that your Vaultek® safe automatically detects the polarity of the battery and can be snapped in either direction.

TIP: Make sure to push battery to back of the battery door allowing the door to close properly.
Close the battery door. When the battery door is closed you will hear a short welcome tone and the keypad will light up.

IMPORTANT: First time users should change the default code immediately after installing the battery to prevent unauthorized access to your safe.

Leaving your safe plugged in continually will not harm the safe or battery.

However, to preserve battery life we suggest that you unplug occasionally to allow the battery to cycle down.

1) To recharge the safe, plug the micro-USB into the micro-USB receiving jack located on the back side of the safe and connect to a standard USB port or wall outlet using the AC power adapter. Approximate recharge time is 2.5 hours.

2) The LED next to the receiving jack on the side of the safe will glow RED indicating charging and GREEN indicating charged.

After installing the battery, use the charging kit provided to charge the unit 100%.

1) Open the safe. Note, keys are included. With the safe open, press and hold the “PROGRAM” button (3 seconds) until all keys turn RED and let go.

2) Enter your NEW master code.

3) IMMEDIATELY Press and hold the “PROGRAM” button a second time (3 seconds) until all keys turn RED and let go.
Enter your NEW master code a second time.

4) IMMEDIATELY Press and hold the “PROGRAM” button together a third time (3 seconds) until the safe beeps and all keys turn GREEN and let go. This tone confirms that the code has been reset.

If you make a mistake and the new code will not work, simply start over with step 1.

Toggle Alert of Manual Unlock: If the Alert of Manual Unlock is on, and someone opens the safe with either the key or by picking the lock, the keypad will start flashing. To toggle Alert Unlock press and hold the ‘3’ key then “PROGRAM” button together for 3 seconds. The keypad will flash GREEN indicating enabled or RED indicating disabled. If ON and activated it can only be cleared by entering master code. Default is OFF.

Tamper Detection: To check for tampering press and hold keys ‘2’ and ‘4’ together for 3 seconds. The ‘3’ key will glow RED to indicate tampering or GREEN to indicate no tampering. You can reset the tamper detection by opening the safe through one of the authorized entry points.

Toggle Sound ON/OFF: To toggle the sound ON/OFF press and hold keys ‘1’ and ‘3’ together for 3 seconds. If the ‘2’ key glows GREEN and beeps, the sound is ON; if the ‘2’ key glows RED, the sound is OFF.

Toggle Travel Mode: Save battery life by disabling the proximity sensor and keypad. To toggle travel mode ON/OFF press and hold keys ‘1’ ‘3’ and ‘5’ together until the safe beeps and the keys light up. If the keys glow RED and beeps, the safe is disabled; if the keys glow GREEN and beeps, the safe is operational.

View Battery Status: To check the battery level press and hold the ‘5’ key on the keypad (3 seconds). Keys from ‘1’ to ‘4’ will glow GREEN or RED to indicate the battery level.

Interior Light Time Extension: To add additional time to the interior light press and hold the ‘2’ key for 3 seconds. The light will turn on for an additional 10 seconds.

Toggle Interior LED Light: To toggle interior light press and hold ‘1’ key for 3 seconds. With the light toggled ON it will illuminate when the safe opens.

TIP: Your safe can install on the mounting plate from the left or right side. When installing the plate, be sure the bottom is parallel to the floor (Fig P) so the safe opens horizontally. Angling the plate or aiming the safe downwards can affect the rail mechanics and prevent safe from opening correctly.

1) Locate mounting surface, making sure the safe will have enough clearance to open properly prior to installing.

2) Hold mounting plate in place and use a pencil to mark desired hole locations. Drill 7/32″ inch pilot holes.

3) Using hardware provided fasten mounting plate in place and tighten firmly.

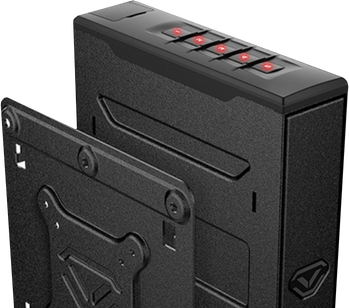

Mounting Safe

1) Locate the 4 receiving slots located on the safe sides, and the 4 tabs located on the mounting plate.

2) Fully insert the tabs on the mounting plate into the receiving slots on the safe (Figure N/O), and press the safe downwards to lock in place (Figure P).
